Inkscape

Inkscape 1.4.4

Inkscape is a free, open source vector graphics editor for Windows, macOS and Linux. It creates and edits SVG drawings with shape, path, text, tracing and export tools.

Updated May 6, 2026
132.08 MB
5.0

Use the arrow keys to choose a rating, then press Enter or Space to submit it.

Excellent 1 user ratings

App Specs

DeveloperInkscape
LicenseFreeware
CategoryGraphics
Available platformsWindows, macOS, Linux
Downloads470

Overview

Inkscape is a free and open source vector graphics editor for Windows, macOS and Linux. People use it for illustration and technical drawing such as logos, clip art, cartoons, typography, diagrams and flowcharts. Because a vector drawing is stored as shapes rather than pixels, it can be printed or rendered at any resolution. Inkscape is released under the GNU General Public License version 2, which permits commercial and non-commercial use.

SVG as the working format

Inkscape saves documents as SVG, the XML-based open standard for vector graphics, so a drawing remains readable by browsers and text editors. A built-in XML editor shows the document tree and lets you edit attributes directly. Inkscape SVG stores extra information such as layers and multiple pages, while plain SVG is available when a cleaner file is needed.

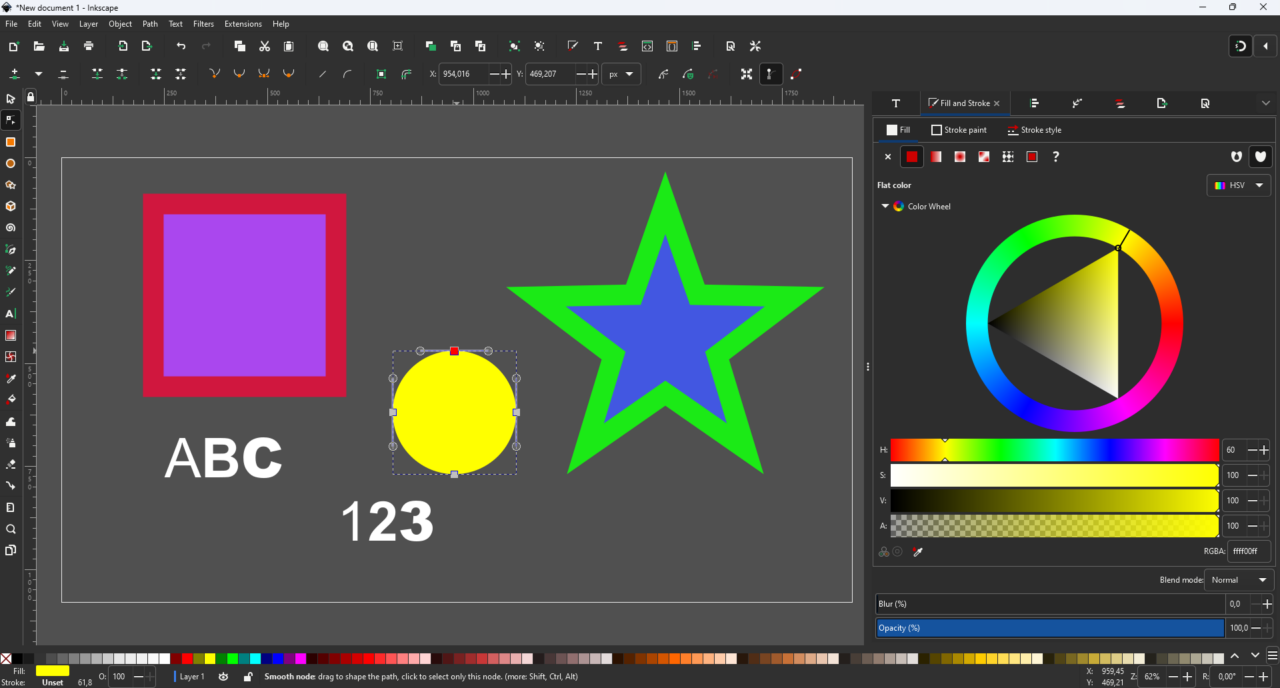

Drawing tools and shapes

Shape tools create objects that stay editable as shapes. These include rectangles with optional rounded corners and ellipses that can become arcs or segments. They also include stars and polygons that can be rounded or randomized, and spirals. Their parameters remain in the tool controls bar. You can change a star’s number of points or a rectangle’s corner radius after drawing.

For free-form work, the Pencil draws freehand paths and the Pen builds Bézier curves and straight lines, with Spiro and B-spline modes for smoother curves. The Calligraphy tool draws filled strokes resembling pen-and-ink lettering.

Editing paths and nodes

Inkscape can convert shapes, text and strokes to paths. The Node tool then exposes every node and its Bézier handles for dragging, aligning and distributing. Simplify reduces the node count with an adjustable threshold. Inset and outset grow or shrink a path, optionally as a linked offset that follows the original.

Boolean operations such as union, difference and intersection combine overlapping paths. The Shape Builder offers a visual alternative. It displays the outlines of the selected objects. Clicking or dragging across the resulting segments keeps them as separate pieces or merges them, while Shift-click removes them.

Live path effects

Live path effects change a path’s appearance while the original geometry stays editable underneath. Examples include rounded corners, power stroke, pattern along path, bend, envelope and perspective deformation, roughen, hatches, sketch, symmetry and rotated copies.

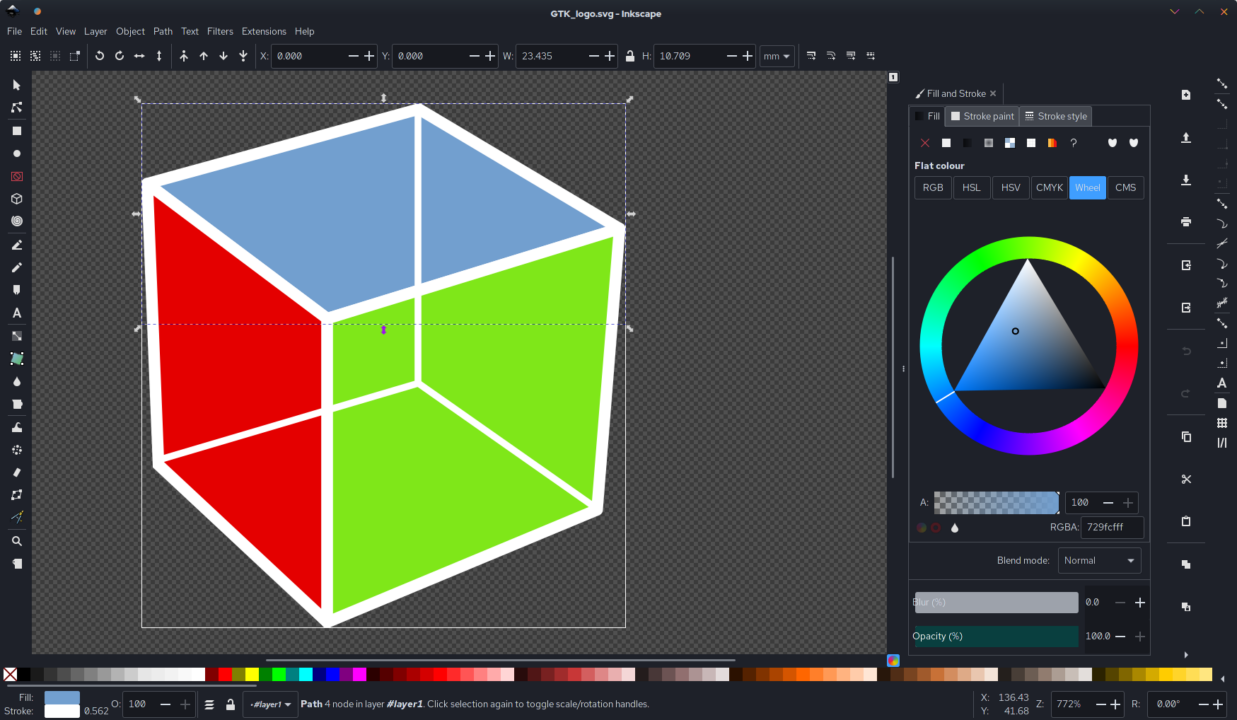

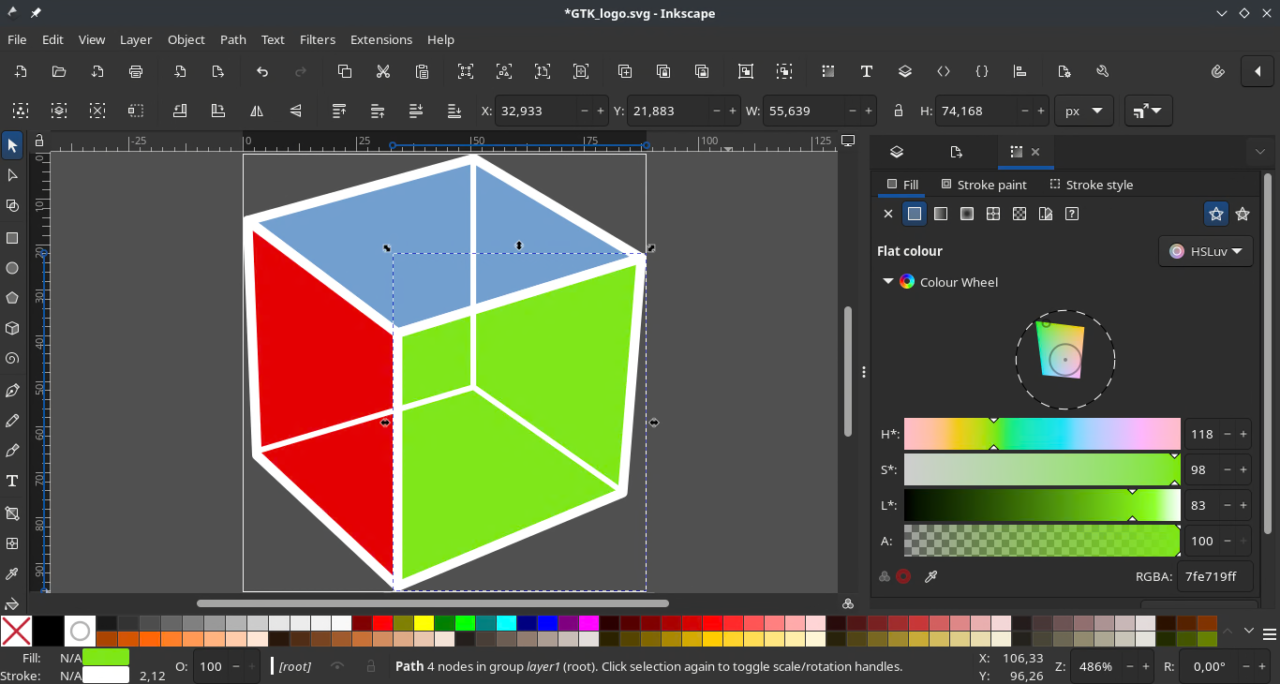

Fill, stroke and color

The Fill and Stroke dialog sets an object’s fill and outline separately. You can pick colors in RGB, HSL, HSV, HSLuv or CMYK, from a color wheel, or from palettes and custom swatches. An alpha value controls transparency. Fills can be flat colors, multi-stop linear or radial gradients, mesh gradients, or vector and bitmap patterns. On-canvas handles adjust the patterns’ position, rotation and size. Strokes take dash patterns and markers such as arrowheads. A filter gallery, a filter editor and blend modes add raster-style effects on top of vector objects.

Text and typography

You edit text in Inkscape directly on the canvas with any installed outline font, including variable fonts and right-to-left scripts. It can run as multi-line text, flow inside a shape or follow a path, with adjustable kerning, letter spacing and line spacing.

Organizing the drawing

You can move, scale, rotate and skew objects with the mouse or by entering exact values. Groups, nested layers and stacking order structure the drawing. You can lock and hide layers or objects. Rectangular, axonometric and modular grids, guides and snapping options support precise placement.

Clones are linked copies that update when the original changes, and the clone tiler arranges them into patterns. One Inkscape document can also hold several pages of different sizes, managed with the Page tool.

Tracing bitmaps

Inkscape imports raster images such as PNG and JPEG and can convert them into vector paths. Trace Bitmap offers brightness cutoff, edge detection and color quantization, each producing different paths from the same image. Its centerline mode turns line art into editable strokes. The traced result is a starting point that usually needs simplifying rather than an exact copy.

Import and export formats

Besides SVG and SVGZ, Inkscape opens PDF, EPS and Adobe Illustrator files, as well as CorelDRAW and Visio drawings. During PDF import, you can convert each font to paths, keep it, substitute it or remove it. You can also append multi-page PDFs to an existing document.

The Export dialog writes PNG, JPEG, WebP, TIFF, SVG and PDF, and further outputs include EPS, PostScript, DXF and OpenDocument Drawing. A batch mode exports layers, pages or selected objects in several formats and resolutions at once. Saving as PDF puts every page into one file. Export and conversion also work from the command line.

Extensions

Inkscape’s Python-based extensions add file formats, generate or modify objects, report drawing information and drive plotters and CNC machines. Many come bundled, and others install from the built-in extension store. Developers can write their own against a documented API.

Key Features

  • Vector drawing with paths, nodes, and Bezier curves
  • Shape tools for rectangles, ellipses, stars, and spirals
  • Text tool with kerning and text-on-path
  • Layers, clipping, and masking
  • Bitmap tracing to convert raster images to vectors
  • SVG, PDF, EPS, and PNG import and export
  • Extensions and Python scripting
